RCS/LVF/PC/ Hoist Mechanism For Tower Crane
RCS/LVF/PC/ Hoist Mechanism For Tower Crane
LVF/JLF/ Hoist Mechanism For Tower Crane
RCS/LVF/PC/ Hoist Mechanism For Tower Crane

RCS/LVF/PC/ Hoist Mechanism For Tower Crane

Additional information

PRICE

$10000-15000
  • +86 15524276285
ASK FOR A QUOTE

Hoist Mechanism including hoist motor, hoist reducer, hoist control panel box, resistance box, drum, and limit switch.

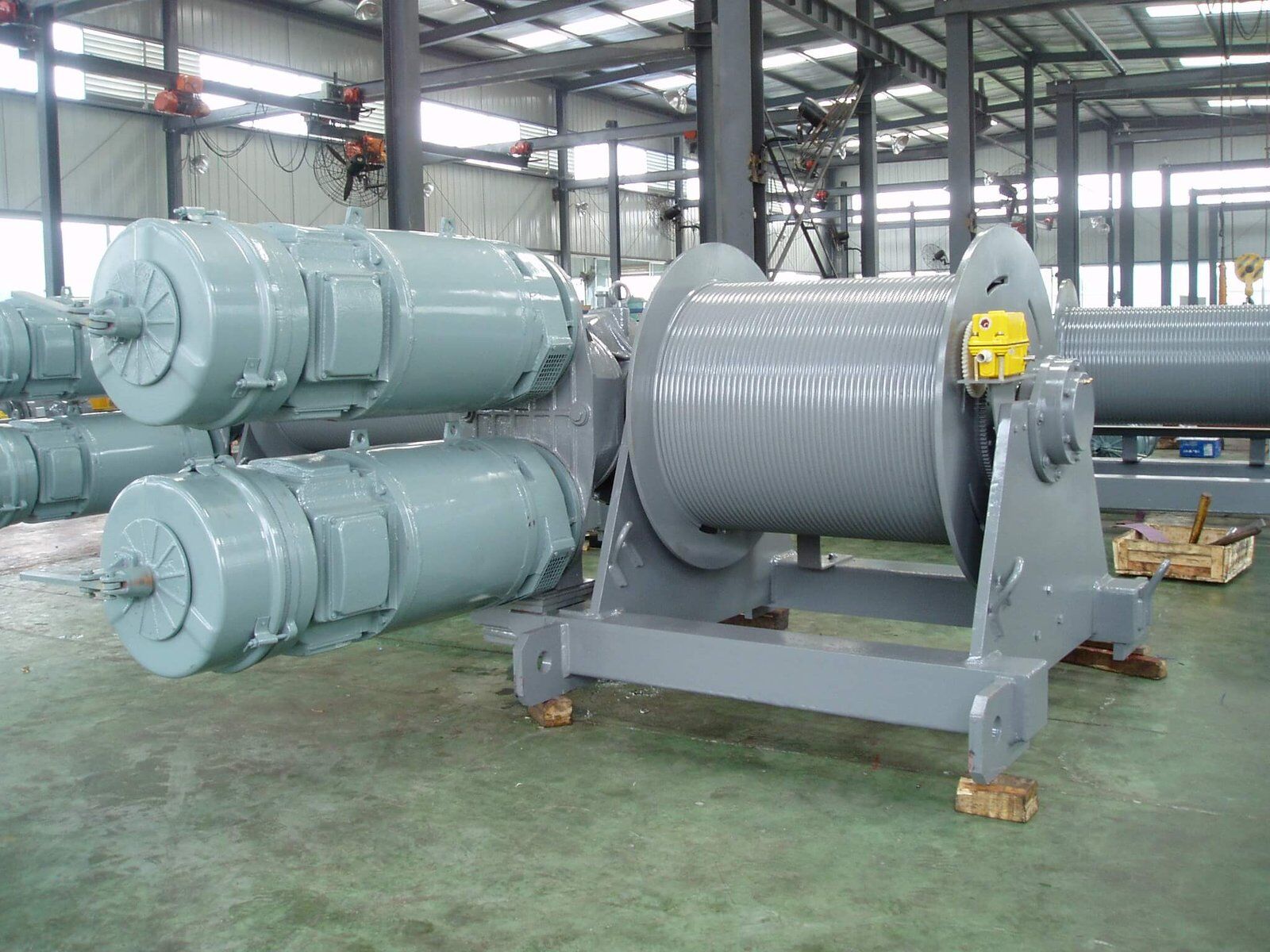

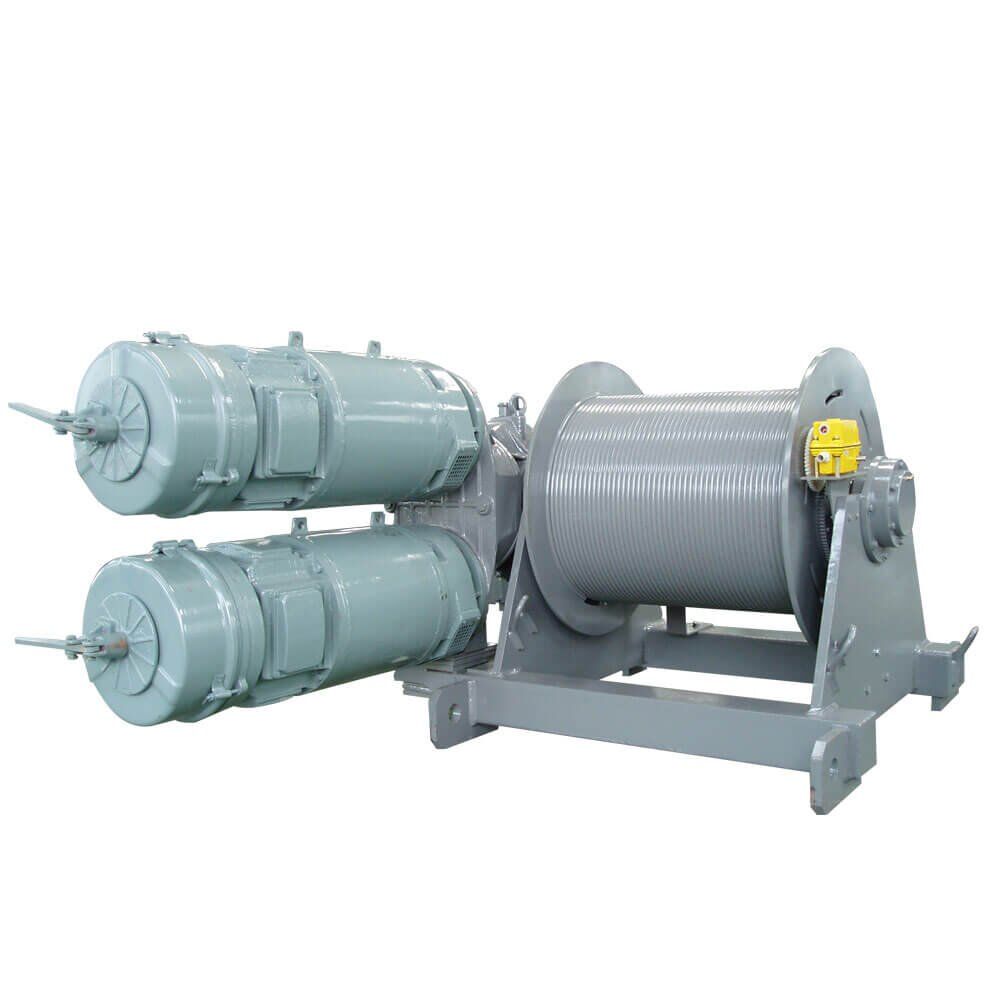

RCS Hoist Mechanism For Tower Crane Spare Parts

Technical Parameters
Model 45RCS20 55RCS25 70RCS25 70RCS30 70RCS40
Rated Single Rope Tension KN 20 25 25 30 40
Magnification 4 4 4 4 4
Rated Power of the Motor (KW) 33 41 51.5 51.5 51.5
Frequency  (Hz) 50 50 50 50 50
Hoisting Speed  (m/min) 20/40 21/42 25/50 12/6 15/30
Hoisting Capacity (t) 8/4 10/5 10/5 12/6 16/8
Rope Capacity (m) 328 500 550 525 550
Nominal Diameter of the Wire rope (mm) 13 14 14 18 20

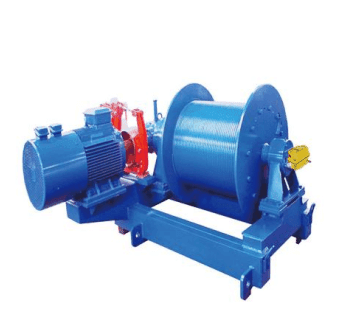

LVF Hoist Mechanism For Tower Crane Spare Parts

Technical Parameters
Model 25LVF13 33LVF15
Rated Single Rope Tension (KN) 13 15
Magnification 2 4 2 4
Rated Power of the Motor (KW) 18.5 24
Working Frequency (Hz) 6-50-100 6-50-100 6-50-100 6-50-100
Hoisting Speed  (m/min) 4.5-37-75 2.2-18-37 5-40-80 2.5-20-40
Hoisting Capacity  (t) 2.5-2.5-1.25 5-5-2.5 3-3-1.5 6-6-3
Rope Capacity  (m) 360 410
Wire rope diameter (mm) 10 12

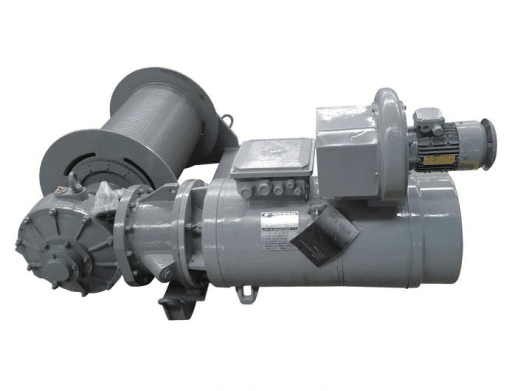

PC Hoist Mechanism For Tower Crane Spare Parts

Technical Parameters
Model 25PC13 33PC15 40PC20
Rated Single Rope Tension (KN) 13 15 20
Magnification 4 4 4
Rated Power of the Motor (KW) 18/18/3.5 24/24/5.5 30
Working Frequency (Hz) 50 50 50
Hoisting Speed (m/min) 33.5-17-3 37.5-19-3 35-17.5-3
Hoisting Capacity (t) 2.5-2.5-5 3-6-6 2-4-8
Rope Capacity (m) 360 400 440
Nominal Diameter of the Wire rope (mm) 10 12 14
